Regulator atlas adj 62X tbp

6,490.00 kr

Mares engineers designed the Atlas Adj 62X regulator with the most extreme conditions in mind.

Artikelnr: N/A Kategorier: , ,

Beskrivning

Mares engineers designed the Atlas Adj 62X regulator with the most extreme conditions in mind. The all-metal second stage offers high thermo-conductivity, making it one of the best-performing regulators, even for cold water diving. Particularly durable, it is designed to meet the requirements of the most demanding diving environments.

With performance standards that exceed expectations at 200m and proven technology at 400m, the Atlas Adj 62X is ready to live up to the high standards divers have come to expect from Mares regulators.

FIRST STAGE

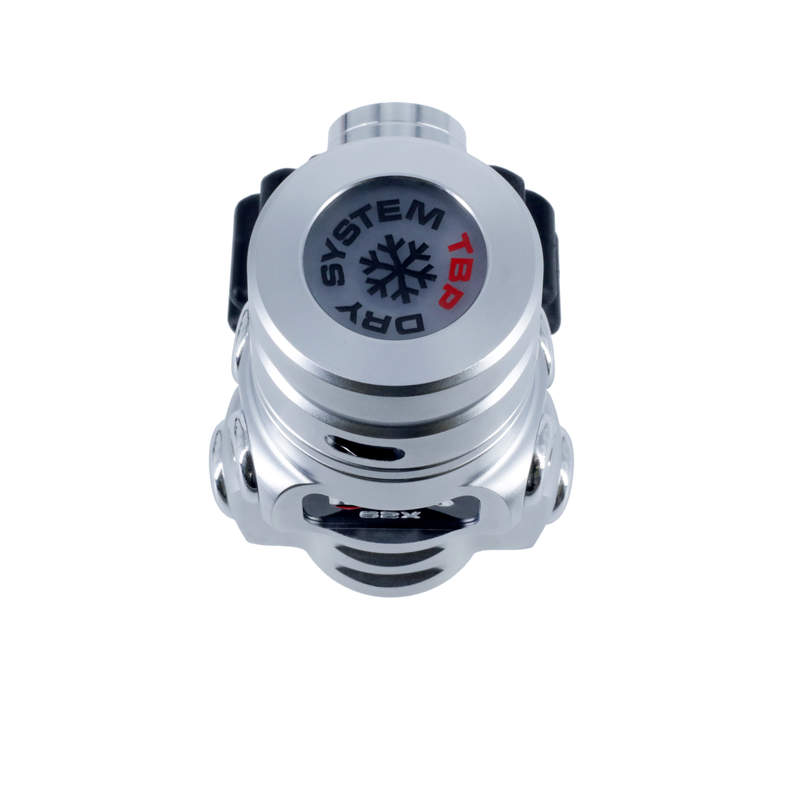

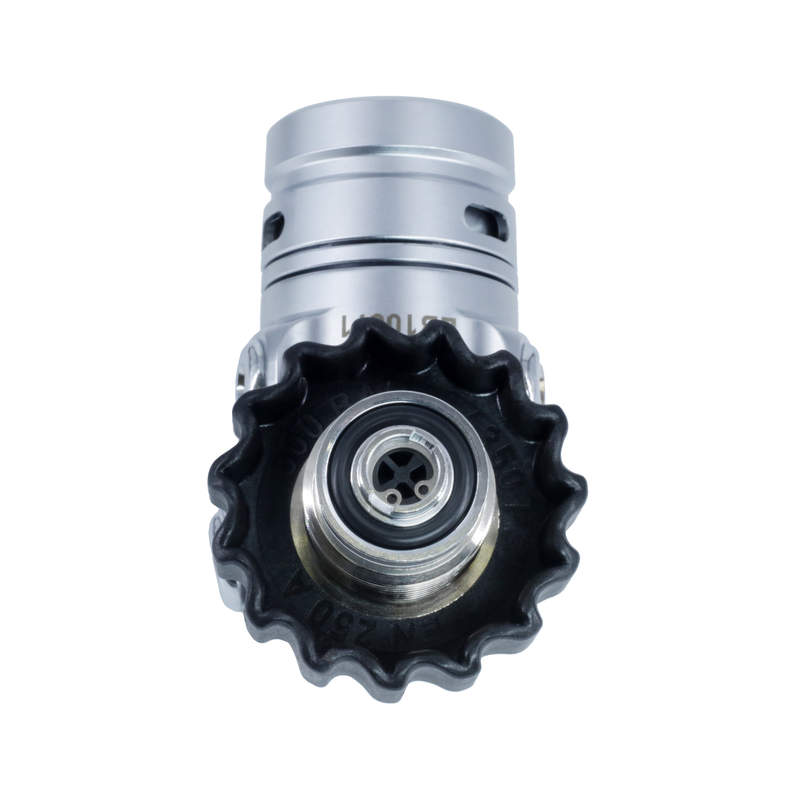

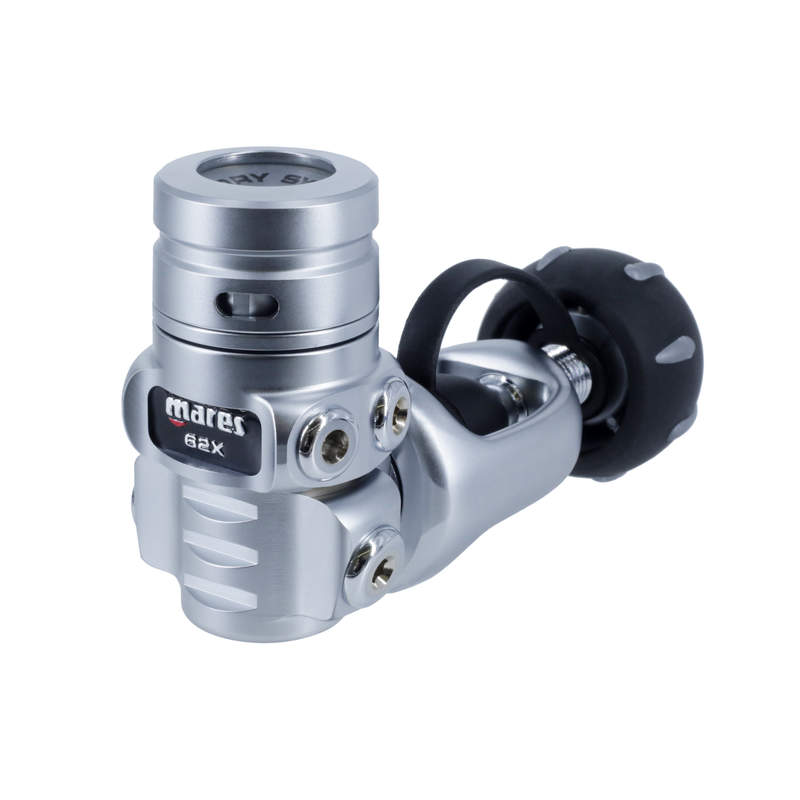

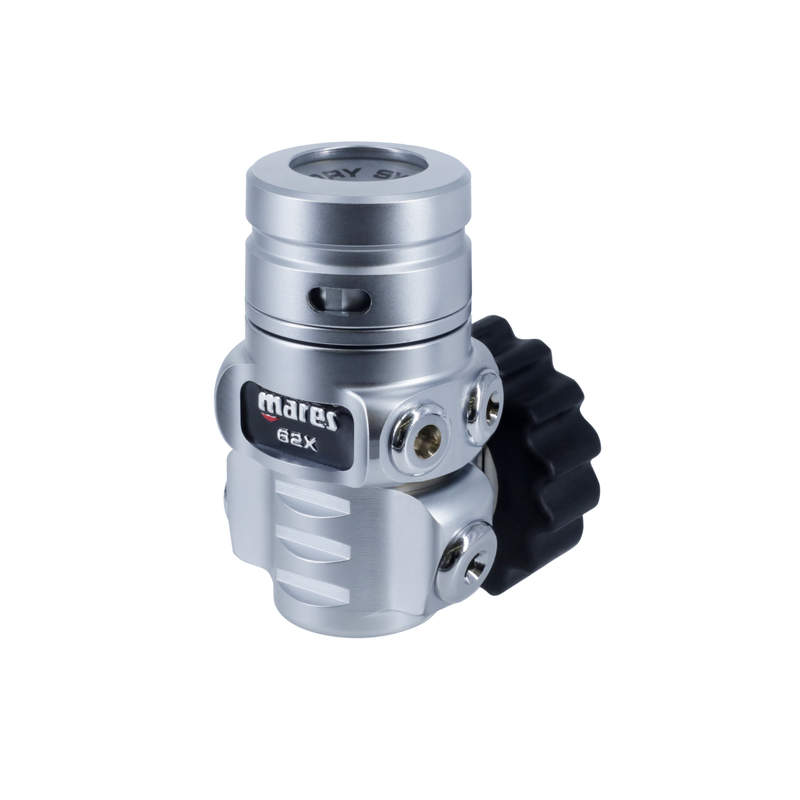

The new 62X TBP first stage is the first from Mares to be equipped with a dual piston, anti-freeze kit. The 62X first stage is also equipped with AST (Auto Sealing Technology), which protects against water entering the first stage, and uses a DFC (Dynamic Flow Control) System which ensures high, constant airflow.

The main features of the 62X first stage are:

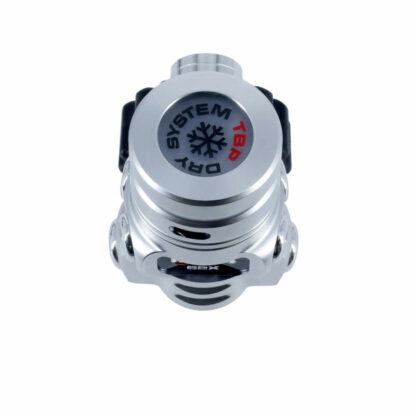

• A T.B.P. system for improved performance during cold water dives
• DFC LP port for high air flow at any depth
• A.S.T. technology to prevent water entry
• Pre-oriented LP and HP ports
• A compact diaphragm first stage
• A pearl chrome finish

SECOND STAGE

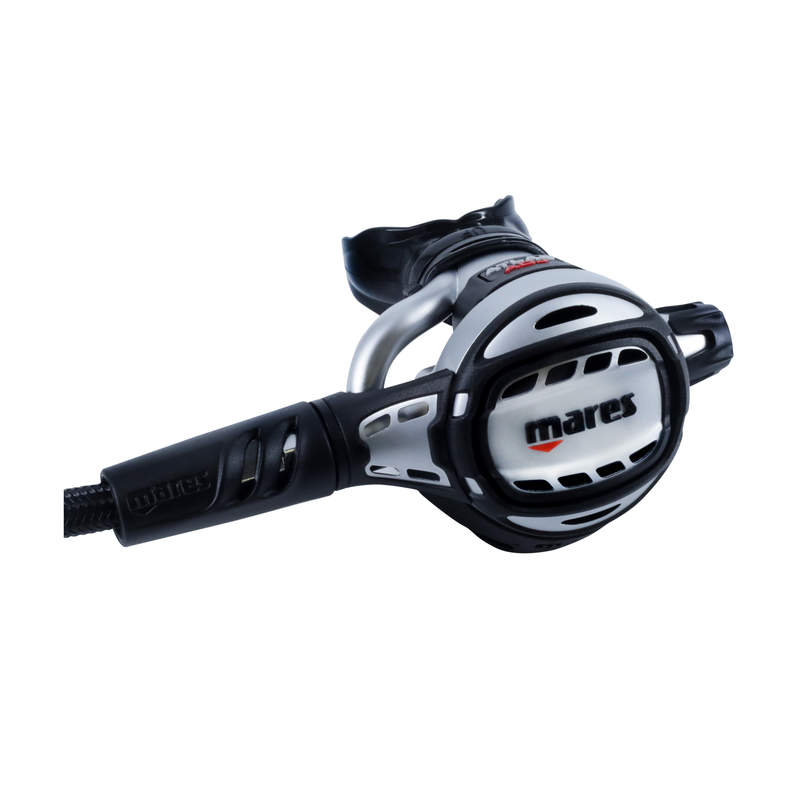

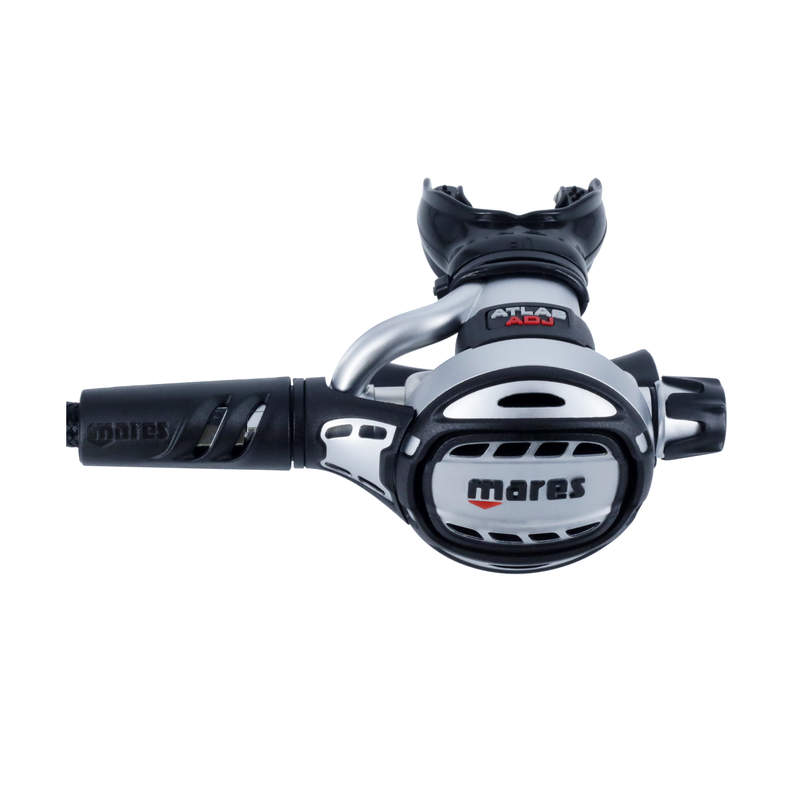

The new Atlas second stage features a PAD (Pneumatically Assisted Design) system in combination with a VAD (Vortex Assisted Design) system patented by Mares. This synergy allows for high airflow, offering smooth, comfortable breathing at all depths and in extreme temperatures. With no moving parts inside the bypass, the potential formation of ice crystals when diving in cold water is not a problem.

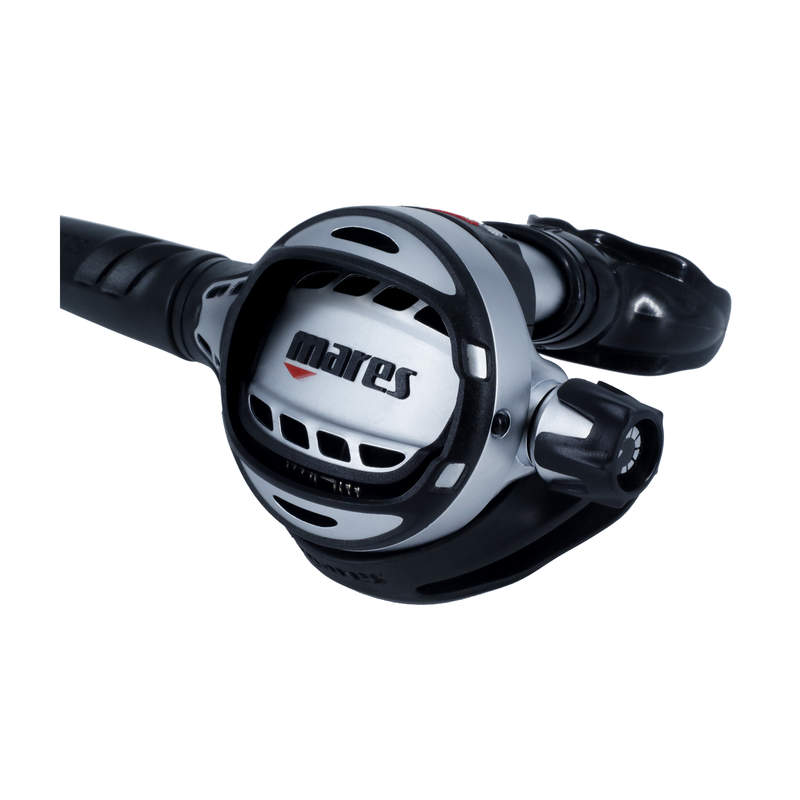

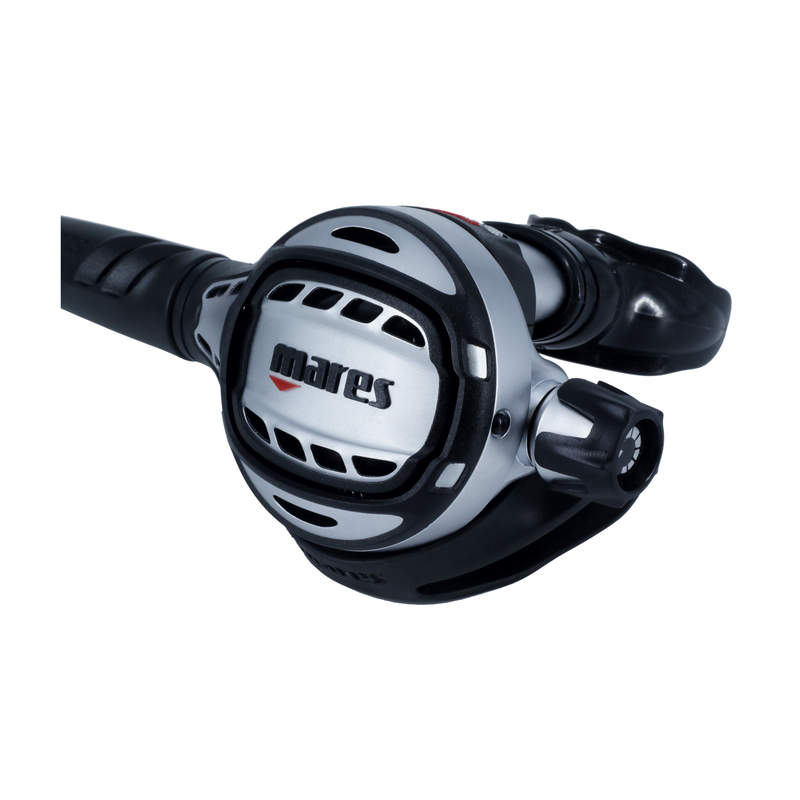

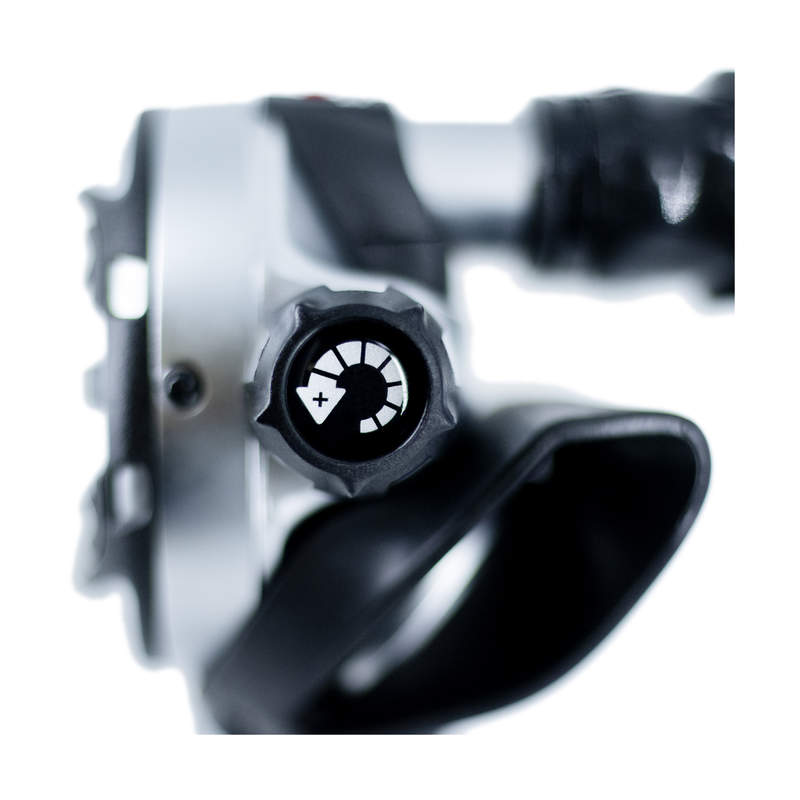

The Atlas second stage is equipped with a large, pivoting purge button and a knob for easy adjustment of breathing comfort, even when wearing gloves. The Atlas regulator uses a Superflex low-pressure hose which, thanks to its light weight and flexibility, guarantees high comfort during use.

The main features of the Atlas second stage are:

• All Metal technology
• A V.A.D. system for natural breathing at any depth
• Adjustable breathing comfort to meet the diver’s needs
• P.A.D. – Pneumatically Assisted Design; the second stage valve is designed and manufactured for pneumatic operation, minimising the spring load and, consequently, inhalation effort
• A large, pivoting exhaust button which is easy to use, even with thick gloves
• High airflow
• A Superflex hose

FACTS
Material – All Metal Technology
First Stage – Balanced Diaphragm
HP Ports – 2 HP 7/16″ UNF Ports
LP Ports – 4 LP 3/8″ UNF Ports

TECHNOLOGY
FOR COLD WATER
Neoprene thickness greater than 5mm.
DFC – DYNAMIC FLOW CONTROL
Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.
VAD – VORTEX ASSISTED DESIGN
The air bypass tube conveys air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.
ALL METAL TECHNOLOGY
Outstanding mechanical resistance and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces the dry mouth feeling during the dive.
SUPERFLEX HOSE
Extreme light weight and exceptional softness guarantee the maximum freedom of movement.

TECHNICAL SPECIFICATION
First stage weight INT – 782g / 27.6oz
First stage weight DIN 300 – 565g / 19.9oz
Second stage weight – 313g / 11oz
Total weight INT – 1225g / 43.2oz
Total weight DIN300 – 1008g / 35.5oz

Ytterligare information

Size

DIN, INT
